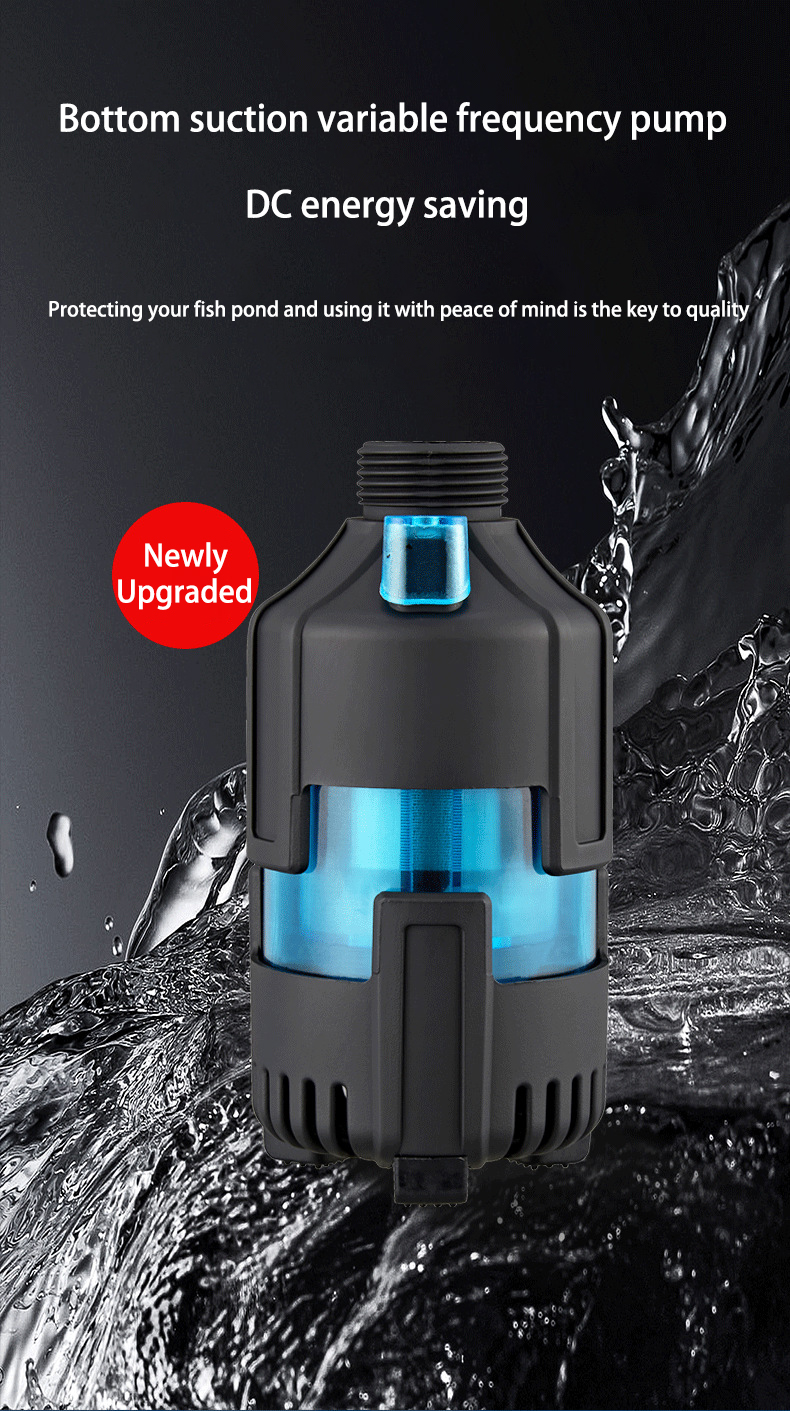

DC Energy-Saving Bottom-Suction Variable-Speed Pump



Serial Number Product Name - Model Input voltage Output voltage Power W Flow rate L/H Head M Water jet nozzle Dimensions (mm) Applicable scenarios
1 DC Energy-Saving Bottom-Suction Variable-Speed Pump-1500 AC-100-240V/50/60HZ DC24V 3-10 1500 2.8 13/19 62*127 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
2 DC Energy-Saving Bottom-Suction Variable-Speed Pump-2500 AC-100-240V/50/60HZ DC24V 5-15 2500 3.8 19/25 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
3 DC Energy-Saving Bottom-Suction Variable-Speed Pump-3000 AC-100-240V/50/60HZ DC24V 5-20 3000 4.0 19/25 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
4 DC Energy-Saving Bottom-Suction Variable-Speed Pump-4000 AC-100-240V/50/60HZ DC24V 5-30 4000 4.5 19/25/32 81*166 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
5 DC Energy-Saving Bottom-Suction Variable-Speed Pump-6000 AC-100-240V/50/60HZ DC24V 5-50 6000 5.0 19/25/32 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
6 DC Energy-Saving Bottom-Suction Variable-Speed Pump-8000 AC-100-240V/50/60HZ DC24V 10-65 8000 6.0 19/25/32 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
7 DC Energy-Saving Bottom-Suction Variable-Speed Pump-10000 AC-100-240V/50/60HZ DC24V 10-80 10000 6.5 25/32/40 94*176 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
8 DC Energy-Saving Bottom-Suction Variable-Speed Pump-13000 AC-100-240V/50/60HZ DC24V 10-90 13000 7.2 25/32/40 Fish tanks, gardens, fish ponds,
rockeries and waterfalls, etc.
